PyHSS

A Diameter Home Subscriber Server written in Python.

PyHSS is the subscriber database and policy side of an LTE (4G) core network. It can act as a standard or VoLTE HSS, an Equipment Identity Register, a PCRF and a GMLC peer, and serves 2G/3G Osmocom components over GSUP. Subscribers live in MySQL, PostgreSQL or SQLite and are managed through a REST API. It exports Prometheus metrics and supports geographic redundancy between instances.

Interfaces

Diameter base

Capabilities exchange, device watchdog, disconnect peer.

S6a

MME to HSS: authentication, update location, purge, notify. HSS to MME: cancel location, delete subscriber data.

S13

MME to EIR: ME identity check.

Cx

I-CSCF and S-CSCF to HSS: user authorization, server assignment, location info, multimedia auth. HSS to S-CSCF: registration termination.

Sh

Application server access to IMS and XCAP data.

SLh

GMLC lookup of the subscriber's serving MME.

Rx

P-CSCF to PCRF: AA and session termination, triggering Gx re-auth for dedicated bearers.

Gx

Credit control and re-auth, including installing charging rules on demand.

Install

The quickest way is Docker Compose, which starts the Diameter, HSS, API and GSUP services and Redis, bound to localhost, with an SQLite database:

git clone https://github.com/nickvsnetworking/pyhss.git
cd pyhss/docker
docker compose up --build -d

A prebuilt image of the current master branch is available. It is rebuilt on every push, so pin it by digest if you use it:

docker pull ghcr.io/nickvsnetworking/pyhss/pyhss:latest

For production, use the Debian and Ubuntu packages from the releases page, or build the image from a release tag:

git checkout 2.0.1
docker build -f docker/Dockerfile -t pyhss:2.0.1 .

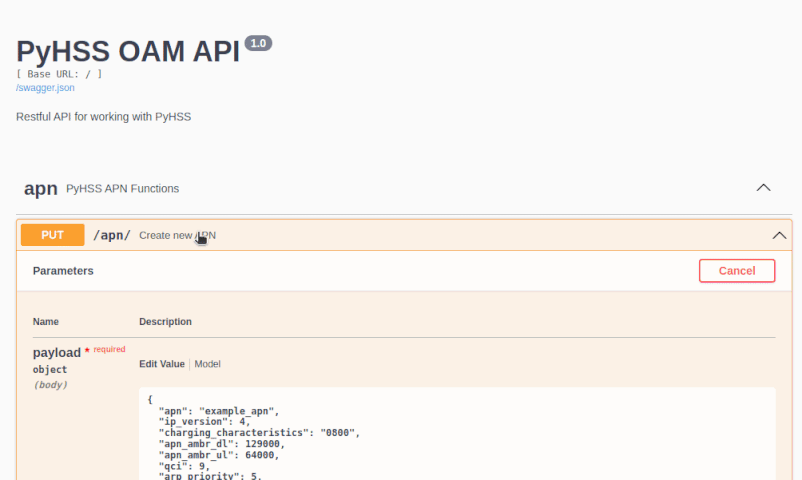

Set the bind address, Diameter hostname, realm, PLMN and transport in config.yaml. TCP is the production-tested transport; SCTP works but is experimental. In Docker, most options can be set through the environment variables in docker/.env, which fill the docker/config.yaml template. The API listens on port 8080 and serves Swagger documentation under /docs/:

Services

Each service does one job; they communicate over Redis.

diameterService

Diameter transport and peer state.

hssService

Request decoding, encoding and HSS logic.

apiService

REST API for provisioning.

gsupService

GSUP for 2G/3G Osmocom components.

georedService

Geo-redundancy messages and webhooks.

databaseService

Experimental: copies MySQL/PostgreSQL tables into Redis; not used by the other services yet.

logService

Optional: writes logs queued in Redis to files. Every service also logs to stdout.

metricService

Prometheus metrics.
